K-V3L01 / K-V3R01 / K-V3T01 / K-V3L02 / K-V3R02 | From $5,801 (RRP) | Supply only

• 3000W/100A inverter-charger

• 40A+ DC-DC vehicle/solar charger with MPPT (solar up to 45V/800W)

• 100A mains charging

• Simarine battery, load and tank monitoring

• Left, right or ceiling mount (Digital: left or right)

• 5-year warranty

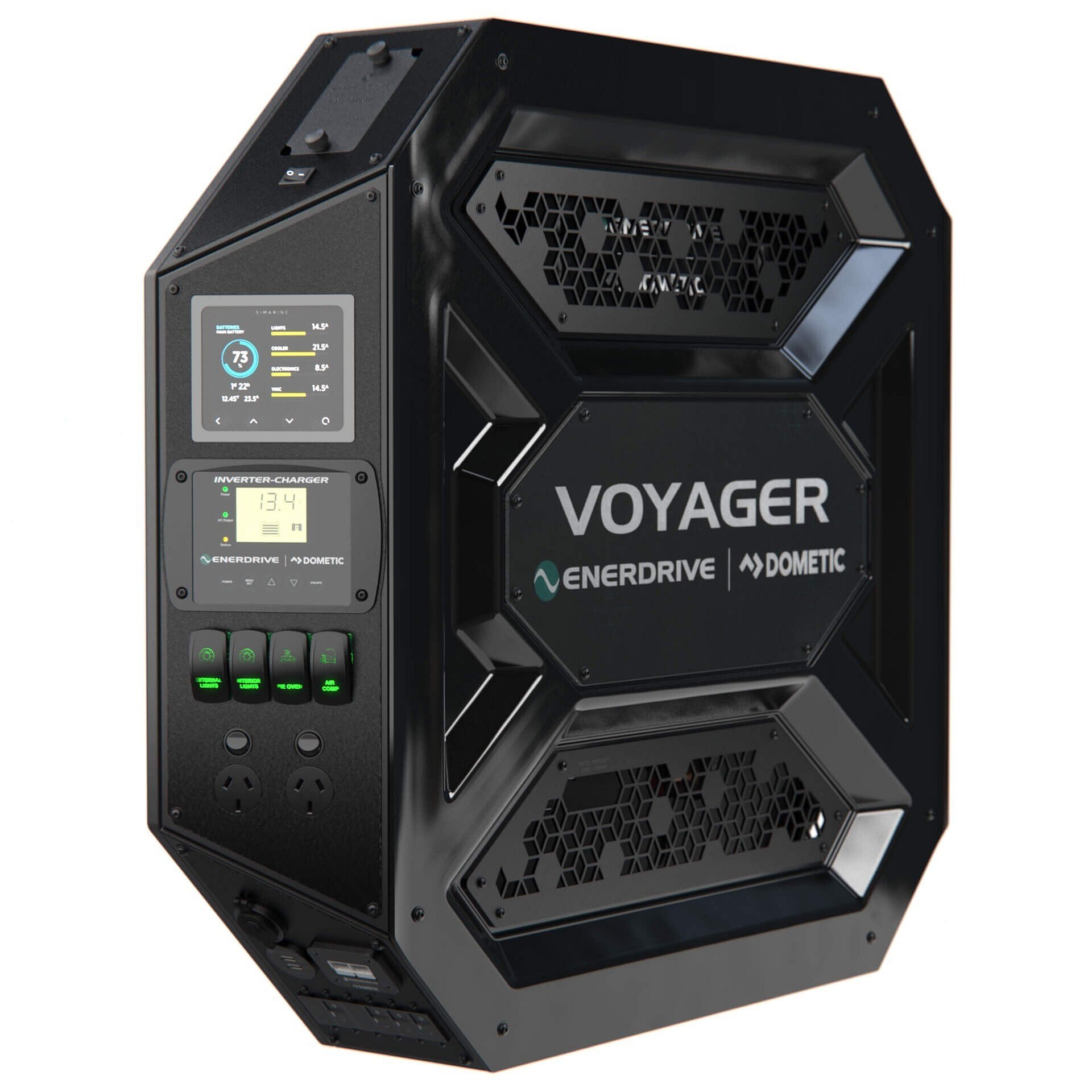

The Enerdrive Voyager is the most powerful canopy system Enerdrive has built. Its 3000W/100A inverter-charger runs things like induction cooktops, microwaves and coffee machines, and you can charge from the vehicle, solar or 240V mains. Everything is easy to reach: loads connect at the flush-mounted fuse panel on top, the main breakers sit at the bottom, and the angled display panel is easy to read wherever it's mounted. Choose rocker switches, or the Voyager Digital with Garmin PowerSwitch digital switches and a built-in light bar. Tropic Accessories supplies the Enerdrive Voyager for canopy builds around Mackay and beyond. Call us on (07) 4952 4122, drop into 4 McLennan St, Ooralea, Mackay, or send a quote request below.

Battery not included. This system is lithium ready and suits most battery types. Ask us about a battery to match it.

Product details

• 3000W/100A inverter-charger, suits appliances up to 3000W such as induction cooktops, microwaves and coffee machines

• Charge from the vehicle (12 or 24V, 40A+ output), solar (DC2DC, up to 45V/800W) or 240V mains (100A charging)

• Monitor battery, loads, charge input and water/fuel tanks with the Simarine monitor or your mobile devices

• Loads connect via the flush-mounted 1 in / 12 out fuse panel on top; main breakers at the bottom

• Octagonal shape sits closer to the canopy door return; angled display panel for easy reading

• Built and wired in house at Enerdrive's Brisbane facility

• Custom rocker switches available

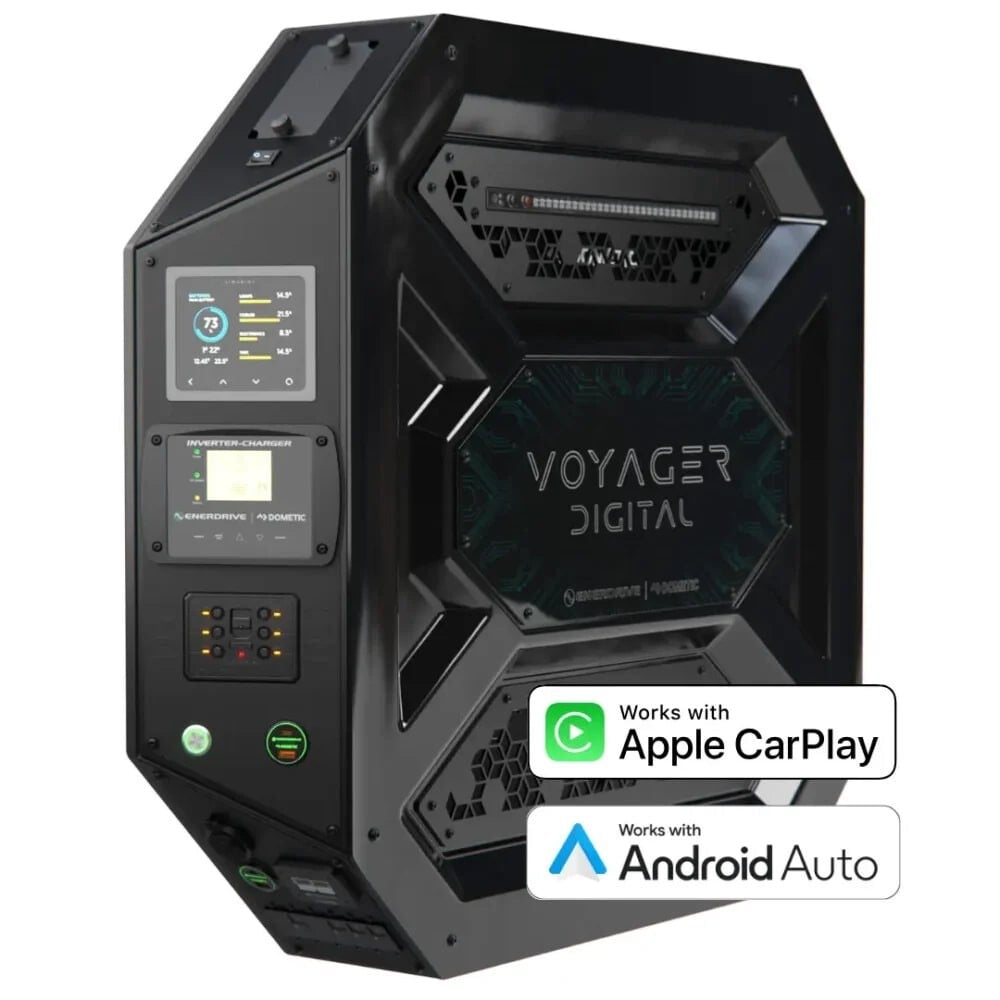

• Voyager Digital (K-V3L02 / K-V3R02): 6 Garmin PowerSwitch™ digital switches and an integrated light bar as standard

Specifications

• Inverter: 3000W/100A inverter-charger

• AC battery charger: 12V 100A

• DC battery charger: 12V 40A+ DC2DC (vehicle/solar)

• Solar charge input: Yes, up to 45V/800W

• Lithium battery ready: Yes

• Battery monitor: Simarine PICO (LCD touch screen, WiFi)

• Individual load/charge module: Simarine SI-SCQ50 included

• Tank monitoring: 2 resistance inputs included; SI-ST107 tank module optional

• Switches (rocker models): 4 x customisable laser-etched Contura water-resistant rocker switches

• Switches (Digital models): 6 x Garmin PowerSwitch™ digital switches

• Integrated light bar: Digital models: standard. Rocker models: sold separately (Voyager Light Bar Upgrade Kit)

• Face panel: 12V cig socket, dual USB-A + USB-C (100W max), Anderson plug socket, twin RCD-protected powerpoint, optional inclinometer

• USB on Digital models: 2 x dual USB-A + USB-C (100W max) sockets (4 outputs)

• Fusing: 1 in / 12 out fuse block, 8 x ATO blade fuses

• Fridge connection: Pre-wired 50A Anderson plug

• Load output: 50A circuit breaker

• Inverter input: 300A circuit breaker

• Smart alternator ignition input: Yes (requires connection)

• Dimensions: 830W x 700H x 155D mm

• Weight: 28.5kg

• Orientation: Left, right or top (ceiling); Digital: left or right

• Warranty: 5 years

What's included

• Voyager system, built and wired in house by Enerdrive

• 3000W/100A inverter-charger

• 40A+ DC-DC vehicle/solar charger

• Simarine PICO monitor with SI-SCQ50 load/charge module

• 1 in / 12 out fuse block, individually monitored Anderson plug outlet and 12V socket outlets

• Digital models: Garmin PowerSwitch™ digital switches and integrated light bar

Voyager Light Bar Upgrade Kit add-on

Add the K-VOY-LT01 light bar to a rocker-switch Voyager for $218. It gives 6000K white and red lighting (mix them for pink), 90 lumens per watt, 12V, IP67 waterproof. It comes standard on the Voyager Digital, so you don't need it with K-V3L02 or K-V3R02. Choose it in the builder below.
